X-SMART M Automatic Paint Dispenser

  • Compact
  • Cost effective
  • Easy to use

X-SMART M is ideal for your businesses with low tinting volume. A modular version of the highly acclaimed X-SMART automatic dispenser series with smaller canisters, it has a robust design, built with our patented piston pump technology and identical features to deliver seamless color performance.

Its tubeless design reduces wastage, making it a cost-effective, cutting-edge dispenser with low maintenance and operational simplicity for reduced capacity.

This Automatic Dispenser is only available in Latin America location.

(Only available in Latin America)

Request Information

Product Information Request

"*" indicates required fields

Country*

Required*
Optional

Features

  • Piston pump technology
  • 16 PP/POM canisters in 1.5 l size
  • Universal and water-based colorants
  • Max flow rate up to 8.45 oz/min
  • 0.077 ml smallest dispense
  • Tubeless design
  • Active nozzle closure
  • NET HWD 45.3″ x 32.7″ x 37.4″

Robust design: built with patented piston pump technology.
Easy installation: compact design allows hassle-free assembly in minutes.

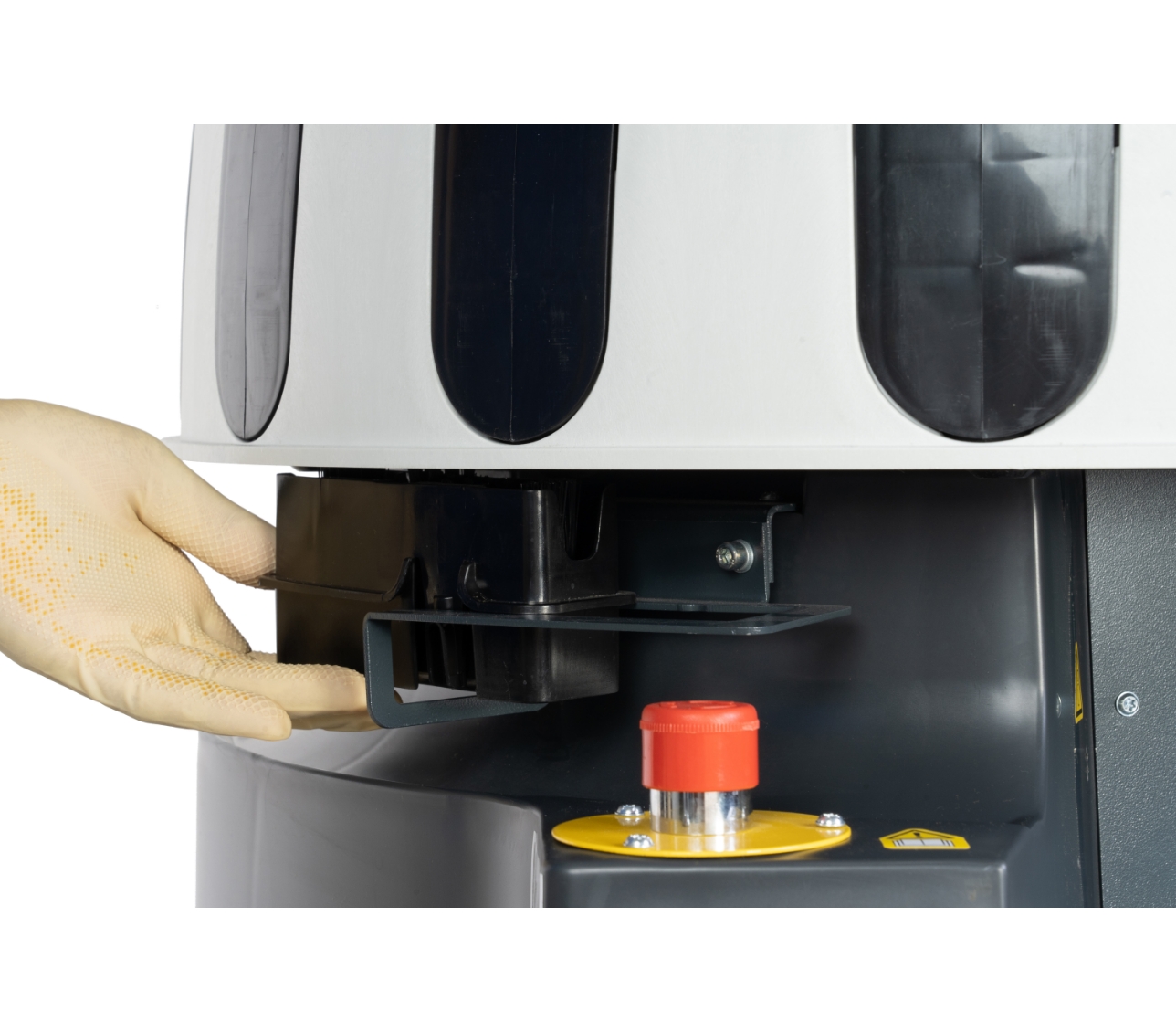

Operator-friendly: safety features to ensure smooth operation.
Low footprint: low footprint with less weight to fit into any paint shop.
Low maintenance: active nozzle closure prevents paint build-up and blockage.
Low power consumption: built-in power backup with UPS/Battery backup support helps increase footprint in places with frequent power outages.



General

  • Automatic sequential
  • Universal, water-based colorants
  • Solvent compatible

Canisters

  • Up to 16 canisters
  • Material: PP/POM
  • Size: 1.5 L (each)

Pump

  • Piston pump
  • Size: 30 ml
  • Flow rate: 8.45 oz/min
  • Min. dispense: 1/384 fl. oz.
  • Nozzle diameter: 4 mm
  • Polymeric needle valve
  • Seals material: Viton and Viton Extreme
  • Copied calibration – No recalibration required

Nozzles

  • Air tight – Integrated nozzle closures
  • Nozzle cleaning system: passive brush

Can Table

  • Manual shelf
  • Dimensions: 15″ x 12.2″ (WxD)
  • Loading height: 10.2″
  • Max. can height: 19″
  • Optical can sensor

Dimension & Weight

  • Net HWD: 45.3″ x 32.7″ x 37.4″
  • Net weight: 99.2 lbs

Power Supply & Safety

  • Low power consumption with UPS/Battery backup support
  • 110V +/- 10%, 50Hz/60Hz
  • 230V +/- 10%, 50Hz/60Hz

When you order accessories, they allow you to personalize your machine to your specifications. Accessories are supplied separately with your machine and have to be mounted during or after the installation.
