X-SMART PRO Automatic Paint Dispenser

  • Sturdy build
  • Small footprint
  • Low Maintenance

X-SMART PRO, an entry-level automatic sequential dispenser of universal and water-based colorants designed for daily tinting needs. Simplicity is at the heart of X-SMART PRO making it a trouble-free solution. Among its many boons are an affordable and reliable dispenser, faster and consistent tinting, compactness, low maintenance, operator-friendliness.

Ready to use:  No assembly required
Sturdy build: Ergonomic design with a sturdy metal enclosure
Small footprint:  Accommodate a desktop or laptop thanks to its low height and flat top besides providing a chamber for hugging in a UPS
Easy to use:  Simple operations that require minimal operator training
Low maintenance:  Devoid of tubes ensuring leak-proof canisters and nozzles while doing away with the complications of rodent bites
Low power consumption:  Power backup through UPS to support for a day

(Only available in Latin America)

Request Information

Product Information Request

"*" indicates required fields

Country*

Required*
Optional

Features

  • Piston pump technology
  • 16 PP/POM canisters in 2.25 l size
  • Water-based, universal, solvent-based (optional)
  • Flow rate up to 9 oz/min (0.25 l/min)
  • 1/384 fl.oz. (0.077 ml) min dispense
  • Tubeless design
  • Active nozzle closure
  • HWD 48.4″ x 32.3″ x 32.7″ (123x82x82 cm)

X-SMART PRO warrants only one-time calibration while guaranteeing higher accuracy and productivity and reproducibility of shades, vital features critical to the industry.

General

  • Automatic sequential
  • Universal, water-based, and solvent-based colorants
  • Solvent compatible

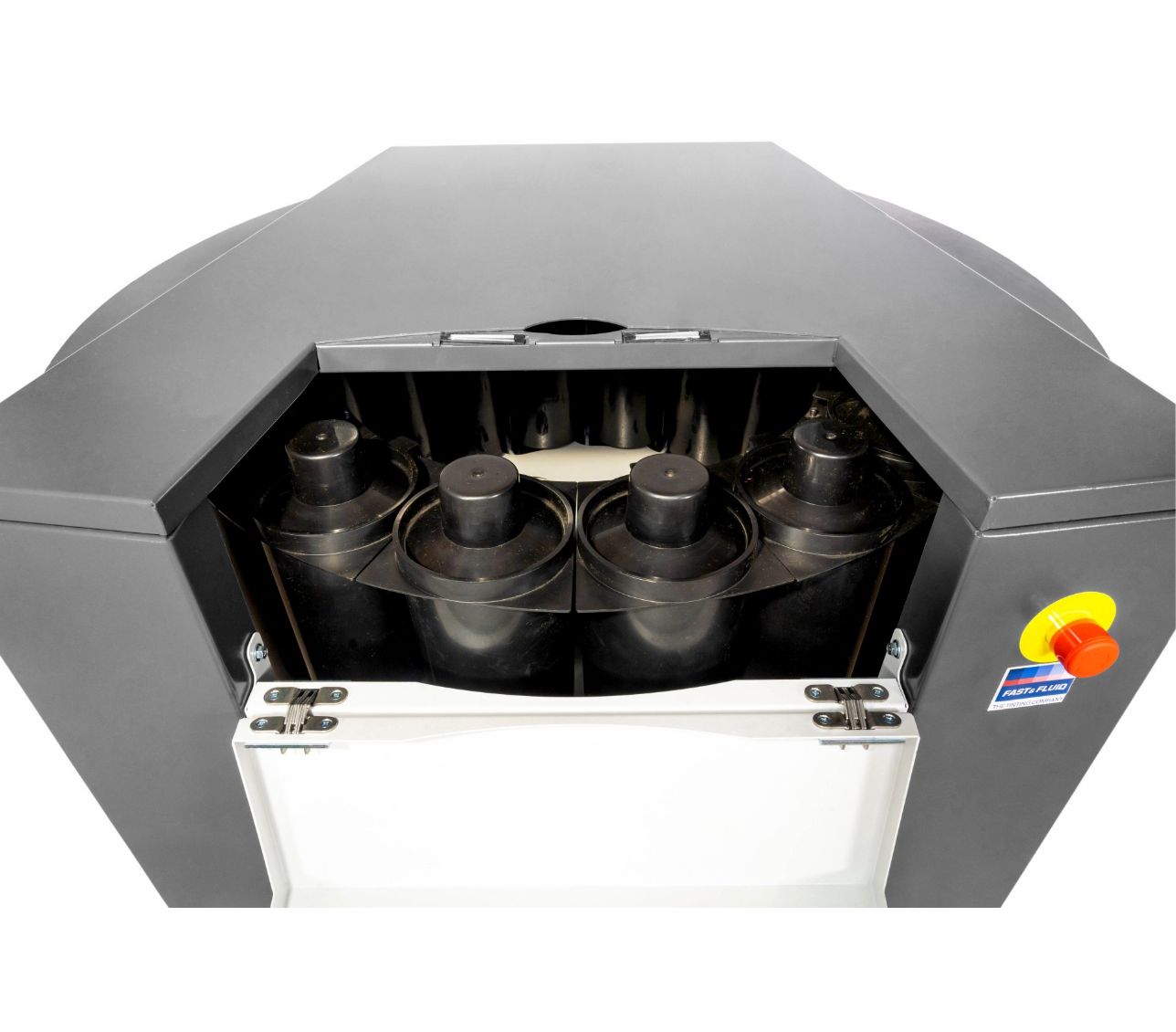

Canisters

  • Up to 16 canisters
  • Material: PP/POM
  • Size: 2.25 l (each)

Pump

  • Piston pump
  • Size: 30 ml
  • Flow rate: 9 oz/min (0.25 l/min)
  • Min. dispense: 1/384 oz/min (0.077 l/min)
  • Nozzle diameter:4 mm; 2mm and 3mm option also available
  • Polymeric needle valve
  • Seals material: Viton and Viton Extreme
  • Copied calibration – No recalibration required

Nozzles

  • Air tight – Integrated nozzle closures
  • Nozzle cleaning system: passive brush

Can Table

  • Manual shelf
  • Dimensions: 9″ x 14.6″ (WxD)
  • Loading height: 9.8″
  • Max. can height: 13″
  • Optical can sensor

Dimension & Weight

  • Net HWD: 48″ x 31.5″ x 35.4″ (122x80x90 cm)
  • Filling height: 45.3″
  • Net weight: 185.2 lbs (84 kg)

Power Supply & Safety

  • Low power consumption with UPS/Battery backup support
  • 110V/230V +/- 10%, 50Hz/60Hz
