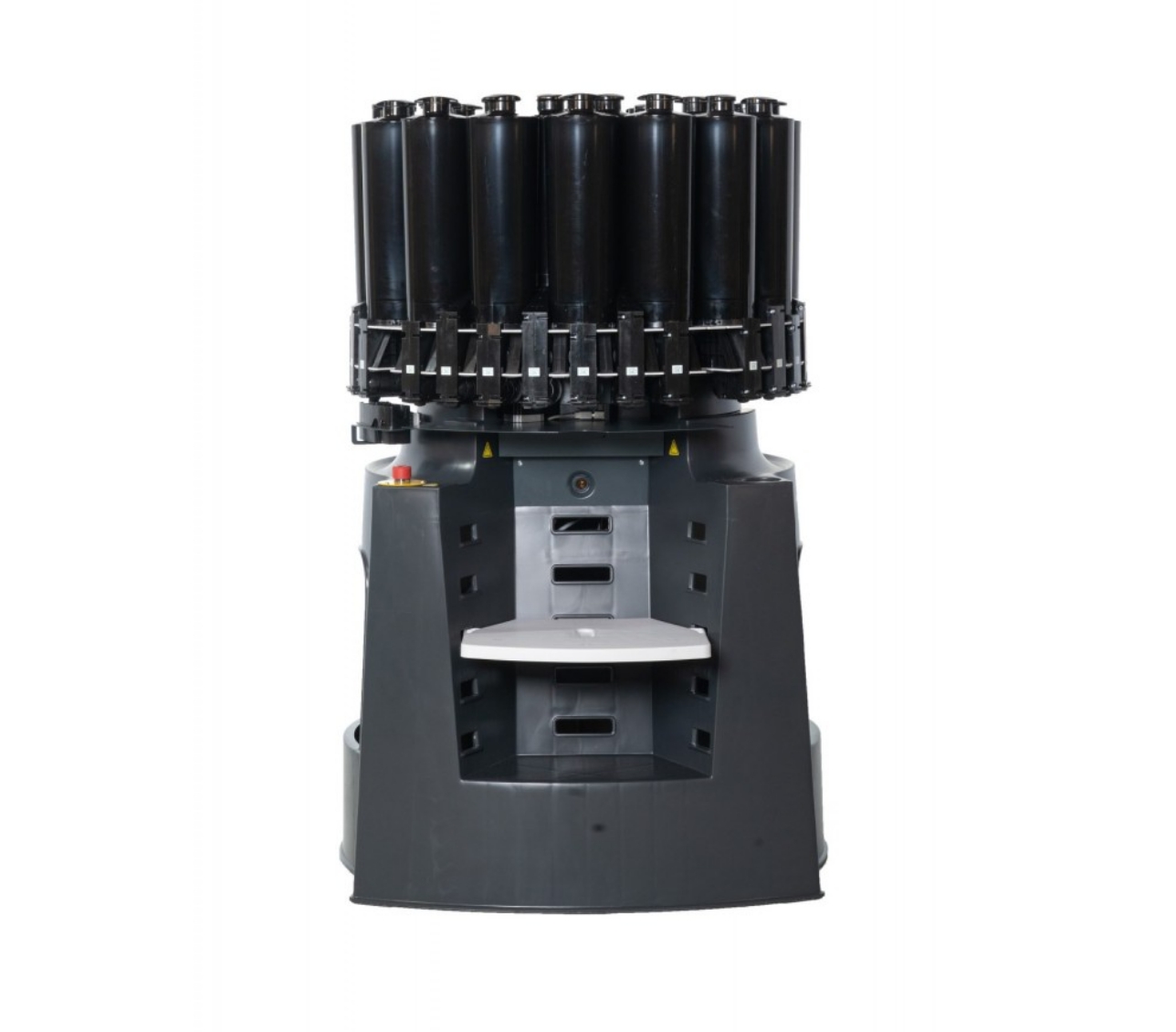

X-SMART XL Automatic Paint Dispenser

  • 32 canisters, yet same footprint
  • 2x faster, simple and reliable
  • Easy logistics

Derived from the X-SERIES platform, the X-SMART XL is designed for simple installation, operation, and maintenance—ensuring consistent, trouble-free tinting in your paint department.

The X-SMART XL automatic paint dispenser allows you to expand your market and explore new POS channels with ease. Available with up to 32 canisters in decorative or solvent configurations, its compact design fits seamlessly into small to mid-sized outlets.

With a space-saving modular design, the X-SMART XL reduces transport costs, assembles in minutes, and offers cost-effective maintenance for long-term reliability.

(only available in Latin America)

Request Information

Product Information Request

"*" indicates required fields

Country*

Required*
Optional

Features

  • Piston pump technology
  • Up to 32 PP canisters (16 x 2.3 l & 16 x 1.3 l)
  • Universal, water-based, and solvent-based colorants
  • Flow rate up to 17 oz/min (0.5 l/min)
  •  1/384 fl. oz. (0.077 ml) min dispense
  • Airtight – integrated nozzle closures
  • HWD 51.6″ x 32.7″ x 32.7″ (131x83x83 cm) (with top cover)

General

  • Automatic sequential
  • Universal, water-based colorants
  • Solvent compatible
  • Bi-directional turntable

Canisters

  • Up to 32 canisters
  • Material: PP/POM
  • Size: 16 x 2.3 Lt + 16 x 1.3 L
  • Click-on-click-off
  • Patented optimal stirrer design

Pump

  • Piston pump
  • Size: 43 ml
  • Flow rate: 16.9 oz/min
  • Min. dispense: 1/384 fl. oz.
  • Nozzle diameter: 4 mm
  • Polymeric needle valve
  • Seals material: Viton and Viton Extreme
  • Calibration: 1st machine only
  • Subsequent machines copied calibration files. Calibration lasts machine lifetime

Nozzles

  • Air tight – Integrated nozzle closures
  • Nozzle cleaning system: passive brush

Can Table

  • Manual can shelf
  • Dimensions: 15″ x 12.2″ (WxD)
  • Can loading height: 10.2″
  • Max. can height: 18.9″
  • Optical can sensor

Dimension & Weight

  • Net HWD: 50.4″ x 32.7″ x 37.4″
  • Filling height: 47.2″
  • Net weight: 161 lbs

Power Supply & Safety

  • 110V/230V +/- 10%, 50Hz/60Hz

Options

Maintenance & Operations

  • Low level (only purge & brush clean)
  • Low TCO
  • Ease of use
  • Minimal operator training
  • Visual LED error indicator

When you order accessories, they allow you to personalize your machine to your specifications. Accessories are supplied separately with your machine and have to be mounted during or after the installation.
