HA680 Automatic Paint Dispenser

  • Heavy-duty design
  • Harbil® ZeroPurge™ Piston pump
  • High Capacity

Designed for high-turnover locations, the HA680 delivers optimal workflow with its large capacity and enhanced dispense speed. Equipped with ZeroPurge™ piston pump and AutoDrive™ technology, it ensures efficient, reliable, and future-ready performance for demanding operations.

Request Information

Product Information Request

"*" indicates required fields

Country*

Required*
Optional

Features

  • Sequential dispensing
  • ZeroPurge Piston pump technology
  • 16 canisters
  • Universal, solvent and water based colorants
  • Pump sizes: 10.2 oz (300 ml)
  • Flow rate: 68 oz/min
  • Smallest dispense: 1/256
  • Operator display
  • Electric can table

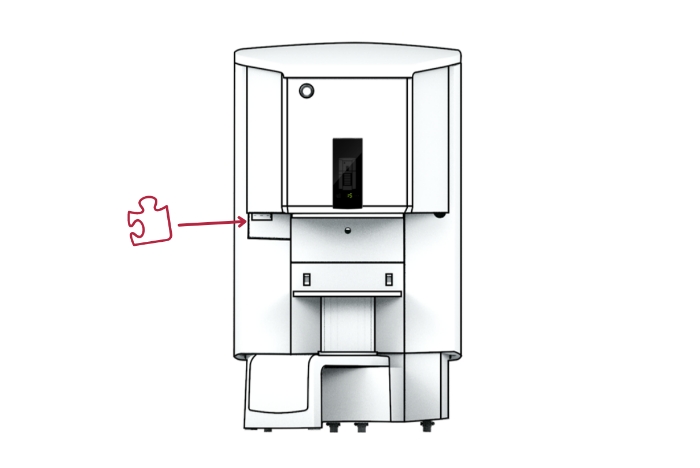

  • Brush monitor
  • HWD 68″x46″x50″

General

  • Automatic sequential
  • Solvent based, water based, universal

Canisters

  • 16 canisters:
  • 4 x 21.2 quarts (20L)
  • 8 x 10.6 quarts (10L)
  • 4 x 6.4 quarts (6L)

Pump

  • Harbil® ZeroPurge™ Piston pump
  • Pump size: 10.2 oz (300 ml)
  • Flow rates: 68 oz/min
  • Min. dispense: 1/256
  • Nozzle diameter: 2/4/6 mm
  • Stainless steel ball valve
  • Seals material: solvent-resistant
  • ZeroPurge™
  • Calibration set via software – no recalibration required

Nozzles

  • Air tight – integrated nozzle closures
  • Nozzle cleaning system: brush monitor

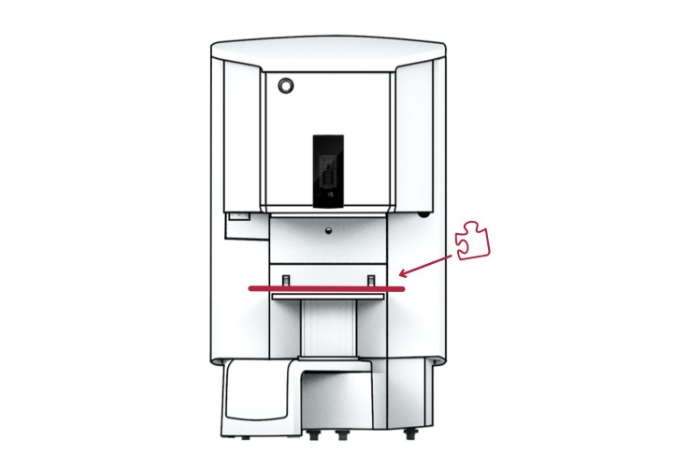

Can Table

  • Electric Lift
  • Dimensions: 18″ x 13″
  • Loading height: 22″
  • Max. can height: 19″
  • Optical can sensor

Dimension & Weight

  • HWD 68″x46″x50″
  • Filling height:
  • 63″
  • From step: 52″
  • Weight – Net/Gross: 904 lbs

Power Supply & Safety

  • 110V +/- 10%, 50Hz/60Hz
  • CE certified, UL approved

When you order options or accessories, they both allow you to personalize your machine to your specifications. Options are
factory-installed features and you will find them built into your machine when it arrives. Accessories are supplied separately and
have to be mounted during or after the installation.

Below find the list of available options & accessories for this product.

options

accessories
