- Entry-Level
- Small Footprint
- Low Maintenance

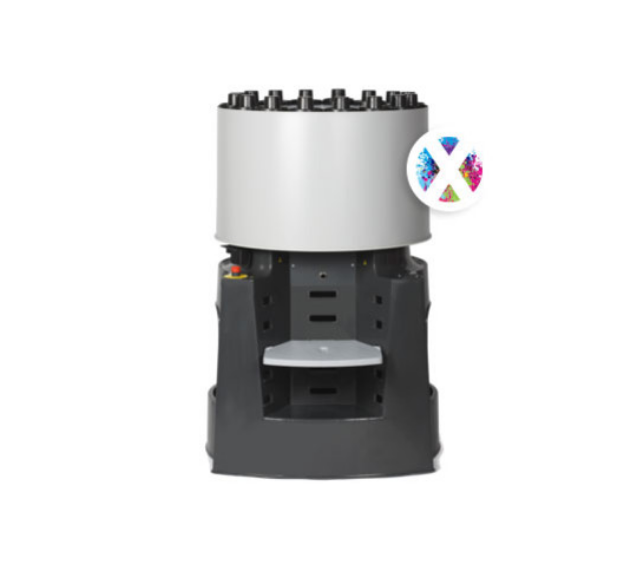

The X-SMART® automatic dispenser is the most economical automatic dispenser on the market. Small in size and big on value, the X-SMART can slide right into the spot your manual dispenser now occupies and help you grow your business. If your paint system calls for a low or zero-VOC-compliant solution, or if you want to reduce mistints and eliminate waste, the X-SMART will do the job with budget-friendly efficiency.
Benefits
- Easy transition from manual to automatic dispensers
- Reduce employee training and mistints through automation
- Universal and Low VOC colorants
- Self-serviceable to reduce downtime and costs
- Small footprint for conservation of floor space














Features

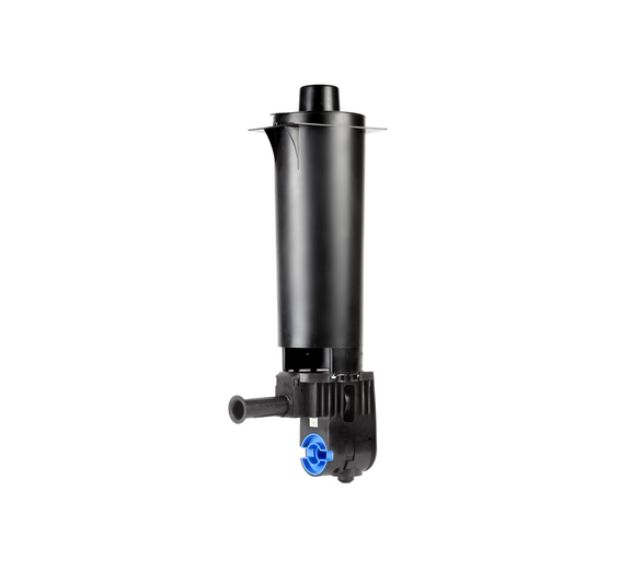

- Piston pump technology
- 16 PP canisters in 2,25 l size
- Universal and water based colorants
- Flow rate up to 7.5 oz/minute
- 1/384th minimum dispense
- Tubeless design
- Active nozzle closure
- HWD 35″W x 33″D x 47″H














- Entry-Level
- Small Footprint
- Low Maintenance
The X-SMART® automatic dispenser is the most economical automatic dispenser on the market. Small in size and big on value, the X-SMART can slide right into the spot your manual dispenser now occupies and help you grow your business. If your paint system calls for a low or zero-VOC-compliant solution, or if you want to reduce mistints and eliminate waste, the X-SMART will do the job with budget-friendly efficiency.
Benefits
- Easy transition from manual to automatic dispensers
- Reduce employee training and mistints through automation
- Universal and Low VOC colorants
- Self-serviceable to reduce downtime and costs
- Small footprint for conservation of floor space
Features
- Piston pump technology
- 16 PP canisters in 2,25 l size
- Universal and water based colorants
- Flow rate up to 7.5 oz/minute
- 1/384th minimum dispense
- Tubeless design
- Active nozzle closure
- HWD 35″W x 33″D x 47″H
General
- Automatic sequential
- Model: X-Smart
- Colorants: Universal, Water based (LVOC/ ZVOC)
Pump
- System: Patented piston pump
- Maximum Flow Rate: 7.5 oz/minute
- Accuracy: 1/384th minimum dispense (colorant dependent)
Can Table
- Manual adjustment with positioning for quart, 1-gallon and 5-gallon containers
Power Supply & Safety
- Dual voltage – 110/220v 50/60Hz
- UL, CSA, FCC, CE
Canisters
- 16 Canisters
- Capacity: 2.25 Liter
Nozzles

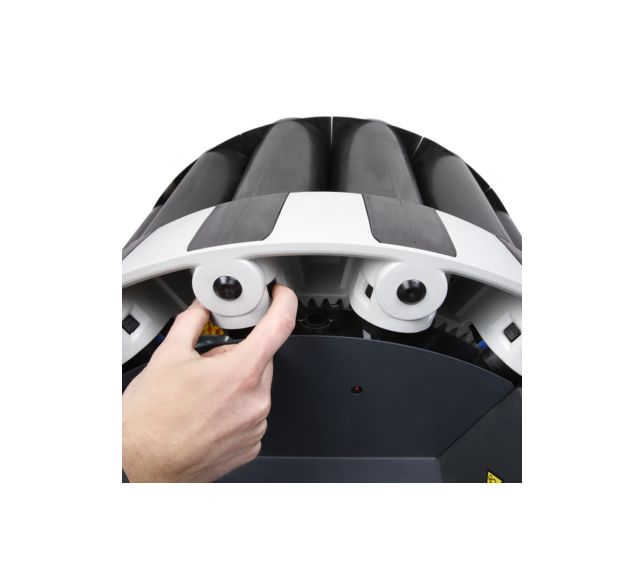

- Patented airtight valve for low-VOC colorants
Dimension & Weight
- Dimensions: 35″W x 33″D x 47″H
- Weight: 145 lbs. (empty canisters)
Options
- ColorPro software to assist in running paint department. Different options available (see software section for details).
- IDEX Dispenser Driver – accompanies customer-designed in-house software programs to interact with dispenser.
When you order accessories, they allow you to personalize your machine to your specifications. Accessories are supplied separately with your machine and have to be mounted during or after the installation.
accessories
Accessories

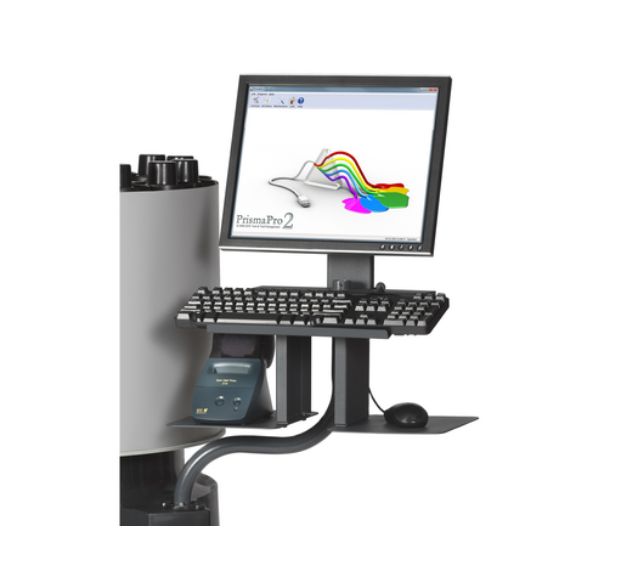

Computer and Monitor
Accessories
Label Printer
Accessories
Maintenance Kit
Accessories
Barcode Scanner
Accessories
Computer/Keyboard support
